HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
Overview
Introduction
HP docking solutions include a range of convenient expansion solutions that easily connect to your HP Business Notebook and enable connectivity to a range of peripherals. Create an ideal desktop computing environment using comfort-focused docking stations and stands that provide port replication, cable management, and future expandability.
These docking stations feature the proprietary HP Docking Station Cable Lock, in addition to an industry standard notebook lock slot. The HP Docking Station Cable Lock (AU656AA) gives you three locking options: lock the docking station only (which also prevents access to the advanced docking station's drive bay); lock both the docking station and the notebook; or physically secure the docking station to a stationary object using the security cable tab.
NOTE: Check the compatibility sections below for a list of products supported by these docking stations. Due to technology changes, some notebook models may be supported by different docking station solutions. Please also refer to your notebook's QuickSpecs for individual compatible product information. All docking stations only support single-link DVI-D.
Models
HP 2012 | 90W Docking Station | A7E32AA |
HP 2012 | 230W Docking Station | A7E34AA |
HP 2012 | 120W Advanced Docking Station | A7E36AA |
HP 2012 | 230W Advanced Docking Station | A7E38AA |
HP Docking Station Cable Lock | AU656AA | |
Compatibility
HP 2012 Docking Stations and HP Advanced Docking Stations are compatible with HP ProBook b-Series Notebook PCs, HP EliteBook 8xxx p Series Notebook PCs, and HP EliteBook 8xxx w Series Mobile Workstations.
The HP 2012 230W Docking Station and Advanced Docking Station are compatible with the HP EliteBook 8xxx p Series Notebook PCs and w Series Mobile Workstations. The HP Docking Station Cable Lock (AU656AA#XXX) is compatible with the docking stations.
NOTE: Some notebook models do not support these docking features. Docking capability for these models is provided by the HP 3005pr USB 3.0 Port Replicator (H1L08AA) and HP 2005pr USB 2.0 Port Replicator (H1L07AA).
NOTE: Not all models are available in all regions.
Service and support
One-year limited warranty. Additional support is available 24 hours a day, seven days a week by phone as well as online support forms. NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 1 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks

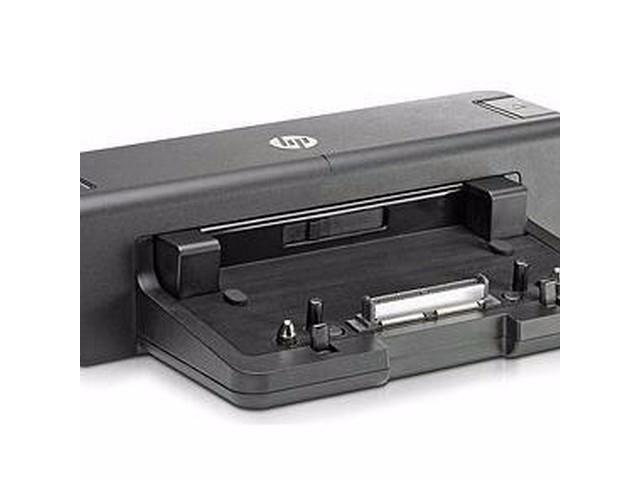

HP 2012 90W and 230W Docking Stations
HP 2012 90W Docking Station
HP 2012 230W Docking Station
1. | Power button | 6. | Battery size lever |
2. | Power light | 7. | Guide pads |
3. | Visual alignment indicator | 8. | Docking posts |
4. | Docking light | 9. | Notebook eject mechanisms |
5. | Notebook eject button | 10. | Docking connector |
HP 2012 90W Docking Station Left-Side Components
HP 2012 230W Docking Station Left-Side Components
1.Always-On USB 3.0 ports
HP 2012 90W Docking Station Right-Side Components
HP 2012 230W Docking Station Right-Side Components
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 2 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
HP 2012 90W and 230W Docking Stations
1. Security cable tab | 2. Integrated cable lock slot |
(to connect HP Docking Station Cable Lock or industry | |
standard notebook lock) | |
HP 2012 90W Docking Station Rear Components | |
HP 2012 230W Docking Station Rear Components |
1. | HP Docking Station Cable Lock slot | 10. | Always-On USB 3.0 port |
2. | Monitor stand port | 11. | DisplayPort connector |
3. | Mouse connector | 12. | Power connector |
4. | Parallel port | 13. | External monitor (VGA) port |
5. | Power light | 14. | Serial port |
6. | Digital video (DVI-D) port | 15. | Keyboard connector |
7. | Powered USB 3.0 port | 16. | Line-In jack |
8. | Security cable slot | 17. | Audio-out (headphone) jack |
9. | RJ-45 (network) jack | 18. | Security cable tab |
DA - 14356 | Worldwide — Version 3 — December 13, 2012 | Page 3 | |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
Hp Docking Station Setup
HP 2012 90W and 230W Docking Stations
Key Benefits
Desktop convenience with full port replication capability in a space-saving design.
Conveniently charges your notebook while it is in the docking station.
Easy docking system provides port replication and cable management in one product.
Four USB 3.0 ports allow you to connect to legacy and evolving peripherals and be more productive.
Optional integrated HP Docking Station Cable Lock allows you to secure your docking station and notebook with one lock. Also supports an industry standard notebook lock.
AC adapter included
The HP 2012 90W Docking Station gives you an energy-efficient 90W Smart AC adapter for your Notebook PC. The HP 2012 230W Docking Station gives you an energy-efficient 230W Smart AC adapter for your Notebook PC or Mobile Workstation. These Smart Adapters help guard against power fluctuations with integrated surge protection.
Standard Features
2 docking posts | Align and secure the computer for proper connection to the docking station |
Docking connector | Connects the computer to the docking station |
Visual alignment indicator Helps you align the computer with the docking station for fast and easy docking | |
Power button and power | Power indicators |
light | |
Eject button and docking | Ejects computer from docking station. Docking light is turned on when the computer is properly connected. |
light | |
USB ports | 4 USB 3.0 ports (3 Always-On, 1 powered) |
Always-On USB port | Allows you to charge USB powered devices while the computer is in standby mode, powered off or not in |
the docking station. | |
Powered USB port | Allows you to connect to select powered USB and regular USB devices. |
Integrated cable lock slot | Supports the HP Docking Station Cable Lock with a drastically simplified locking mechanism. Gives you two |
security options: lock the docking station only (which also prevents access to the Advanced Docking | |
Station drive bay); or lock both the docking station and your notebook for additional security. | |
Also supports an industry standard notebook lock. | |
Audio and Network | Audio and Ethernet ports, Line-in jack, headphone jack; does not support mic out |
connectors | |
Legacy connectors | Mouse, keyboard, serial and parallel connectors |
Other connectors | 1 Monitor Stand, 1 DisplayPort 1.2, 1 VGA, and 1 DVI-D connector. AC adapter connector with light |
Smart Adapter | HP 90W Smart AC Adapter or HP 230W Smart AC Adapter |
NOTE: Your computer, docking station, and monitor must all support USB 3.0 and DisplayPort 1.2 to benefit from the advanced speeds or features that these technologies provide. If one of the devices does not support these technologies, you will still have USB 2.0 and DisplayPort 1.1 functionality.
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 4 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
HP 2012 90W and 230W Docking Stations
Specifications
Dimensions | 2.6 x 10.24 x 6.44 in (6.60 x 26.00 x 16.36 cm) | |
(H x W x D) | ||
Weight | 2.36 lbs (1.07 kg) | |
Power Supply (input) | Rated Voltage | 100 to 240 V |
Rated Current | 2.5A rms | |
Line Frequency | 50 - 60 Hz | |
Temperature | Operating | 50° to 95° F (10° to 35° C) |
Non-operating | 14° to 140° F (-10° to 60° C) | |
Relative Humidity | Operating/Non-condensing 10% to 90% relative humidity | |
Non-operating | 5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb | |
temperature | ||
Maximum Altitude | Operating | 0 to 10,000 ft (0 to 3,048 m) |
Non-operating | 0 to 30,000 ft (0 to 9,144 m) | |
Shock | Operating | 10 G, 11 ms, half-sine |
Non-operating | 60 G, 11 ms, half-sine | |
Vibration | Operating | 0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min sweep rate |
Non-operating | 1 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min sweep rate | |
Option Kit Contents | HP 2012 90W Docking Station, AC power adapter, documentation | |
HP 2012 230W Docking Station, AC power adapter, documentation | ||
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 5 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
HP 2012 120W and 230W Advanced Docking Stations
HP 2012 120W Advanced Docking Station
HP 2012 230W Advanced Docking Station
Docking Station For Hp Elitebook
1. | Power button | 6. | Battery size lever |
2. | Power light | 7. | Guide pads |
3. | Visual alignment indicator | 8. | Docking posts |
4. | Docking light | 9. | Notebook eject mechanisms |
5. | Notebook eject button | 10. | Docking connector |
HP 2012 120W Advanced Docking Station Left-Side Components
HP 2012 230W Advanced Docking Station Left-Side Components
1. | SATA upgrade bay | 4. | eSATA adapter |
2. | Audio-out (headphone) jack | 5. | SATA upgrade bay release lever |
3. | Line-in jack |
HP 2012 120W Advanced Docking Station Right-Side Components
HP 2012 230W Advanced Docking Station Right-Side Components
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 6 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
HP 2012 120W and 230W Advanced Docking Stations
1. | Security cable slot | 3. Integrated cable lock slot |
2. | (4) USB 3.0 ports | (to connect HP Docking Station Cable Lock or industry |
standard notebook lock) |
HP 2012 120W Advanced Docking Station Rear Components
HP 2012 230W Advanced Docking Station Rear Components
1. | HP Docking Station Cable Lock slot | 9. | RJ-45 (network) jack | |
2. | Security cable tab | 10. | Power connector | |
3. | Mouse connector | 11. | DisplayPort connector | |
4. | Parallel port | 12. | Powered USB 2.0 port | |
5. | Monitor stand port | 13. | Always-On USB 2.0 port | |
6. | Digital video (DVI-D) ports | 14. | External monitor (VGA) port | |
7. | Power light | 15. | Serial port | |
8. | Security cable slot | 16. | Keyboard connector | |
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 7 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
HP 2012 120W and 230W Advanced Docking Stations
Key Benefits
Robust desktop replacement solution for your mobile office with advanced features for future expansion.
Conveniently charges your notebook while it is in the docking station.
Easy docking system provides port replication and cable management, plus expandability through an integrated SATA upgrade bayall in one product.
Four USB 3.0 ports and two USB 2.0 ports allow you to connect to legacy and evolving peripherals and be more productive. Optional integrated HP Docking Station Cable Lock allows you to secure your docking station, notebook and integrated SATA drive with one lock. Also supports an industry standard notebook lock.
Hp Elitebook Docking Station Manual
AC adapter included
The HP 2012 120W Advanced Docking Station gives you an energy-efficient 120W Smart AC adapter for your Notebook PC. The HP 2012 230W Advanced Docking Station gives you an energy-efficient 230W Smart AC adapter for your Notebook PC or Mobile Workstation. These Smart adapters guard against power fluctuations with integrated surge protection.
Standard Features
2 docking posts | Align and secure the computer for proper connection to the docking station |
Docking connector | Connects the computer to the docking station |
Visual alignment indicator Helps you align the computer with the docking station for fast and easy docking | |
Power button and power | Power indicators |
light | |
Eject button and docking | Ejects computer from docking station. Dock light is turned on when the computer is properly connected. |
light | |
USB ports | 4 USB 3.0 ports (Always On), 2 USB 2.0 ports (1 Always-On, 1 powered) |
Always-On USB port | Allows you to charge USB powered devices while the computer is in standby mode, powered off or not in |
the docking station. | |
Powered USB port | Allows you to connect to select powered USB and regular USB devices |
Integrated cable lock slot | Supports the HP Docking Station Cable Lock, which gives you two security options: lock the docking station |
only (which also prevents access to the Advanced Docking Station drive bay); or lock both the docking | |
station and your notebook for additional security. | |
Also supports an industry standard notebook lock. | |
eSATA port | Enable ultra-fast (up to 3Gb/s) external data connectivity with any customer supplied eSATA device such as |
an eSATA Hard Drive. | |
Audio and Network | Audio and Ethernet ports, line-in jack, headphone jack; does not support mic out |
connectors | |
Legacy connectors | Mouse, keyboard, serial and parallel connectors |
Other connectors | 1 Monitor Stand, 2 DisplayPort 1.2, 1 VGA, and 2 DVI-D connectors. AC adapter connector with light |
NOTE: A maximum of three displays can be supported through the HP 2012 120W Advanced Docking | |
Station (A7E36AA) and HP 2012 230W Advanced Docking Station (A7E38AA). The DisplayPort and DVI | |
connectors are shared, so you may choose one DisplayPort or DVI plus a second DisplayPort, or DVI plus | |
the VGA connector. Therefore, the choices are DP+DP+VGA, DP+DVI+VGA, DVI+DP+VGA or DVI+DVI+VGA. | |
Upgrade bay | Supports all HP upgrade bay hard drives and optical drives for additional local storage capabilities. |
Smart Adapter | HP 120W or HP 230W Smart AC Adapter |
NOTE: Your computer, docking station, and monitor must all support USB 3.0 and DisplayPort 1.2 to benefit from the advanced speeds or features that these technologies provide. If one of the devices does not support these technologies, you will still have USB 2.0 and DisplayPort 1.1 functionality.
DA - 14356 Worldwide — Version 3 — December 13, 2012 Page 8
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
HP 2012 120W and 230W Advanced Docking Stations
Specifications
Dimensions | 2.60 x 10.65 x 10.24 in (6.6 x 27.05 x 26.0 cm) | |
(H x W x D) | ||
Weight | 3.61 lbs (1.637 kg) | |
Power Supply (input) | Rated Voltage | 100 to 240 V |
Rated Current | 2.5A rms | |
Line Frequency | 50 - 60 Hz | |
Temperature | Operating | 50° to 95° F (10° to 35° C) |
Non-operating | 14° to 140° F (-10° to 60° C) | |
Relative Humidity | Non-operating | 5% to 90% relative humidity, 101.6° F (38.7° C) maximum wet bulb |
temperature | ||
Maximum Altitude | Operating | 0 to 10,000 ft (0 to 3,048 m) |
Non-operating | 0 to 30,000 ft (0 to 9,144 m) | |
Shock | Operating | 10 G, 11 ms, half-sine |
Non-operating | 60 G, 11 ms, half-sine | |
Vibration | Operating | 0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min sweep rate |
Non-operating | 1 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min sweep rate | |
Option Kit Contents | HP 2012 120W Advanced Docking Station, AC power adapter, documentation | |
HP 2012 230W Advanced Docking Station, AC power adapter, documentation | ||
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 9 |
HP 2012 Docking Stations and HP 2012 Advanced Docking Stations for HP Business Notebooks
Related Options
HP Docking Station Cable Lock | AU656AA#XXX |
HP Upgrade Bay 500 GB 7200 rpm Hard Drive (works with pre-2011 HP Business Notebooks) | AU097AA |
HP 2011 BNB Notebook Upgrade Bay DL DVD+/-RW | LZ835AA |
HP 500-GB 7200rpm Primary SATA Hard Drive | AU098AA |
HP USB Keyboard/Mouse Bundle* | RC465AA |
HP Adjustable Display Stand | AW663AA |
HP LCD Monitor Stand | QM196AA |
*Availability may vary by region. Check your notebook platform QuickSpecs for specific compatibility. | |
© Copyright 2012 Hewlett-Packard Development Company, L.P. | |
The information contained herein is subject to change without notice. |
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 14356 Worldwide — Version 3 — December 13, 2012 | Page 10 |
Puter showcase dock hp thunderbolt g2 docking station multiple external displays through thunderbolt dock g2 hp hp advanced docking station hstnn i10x about dock photos dell s fastest charging docks hp elite 8460p docking station manual
Hp Docking Station
Hp Advanced Docking Station Manual
Hp 2013 Docking Station Manual
Hp elite 8460p 8760w 8770w 230w docking station a7e34aa hp 230w thunderbolt g2 bo dock 3tr87aa abb hp 2016 230w advanced docking station note dock port tpq198wcwt note pc user manual hp hp a7e32aa abb 2016 90w docking station for notes
